Help file for Fit ;o)

by Jari í Hjøllum.
Latest edit: 03-04-2006 for Fit;o) 1.0.0.60 - Support for MathML by your browser recommended.

Content

The Main window
The Open window
The Mössbauer fit window
The Mössbauer calibration window
The Settings window
The Minerals window
File formats
The exp format
LaTeX Export

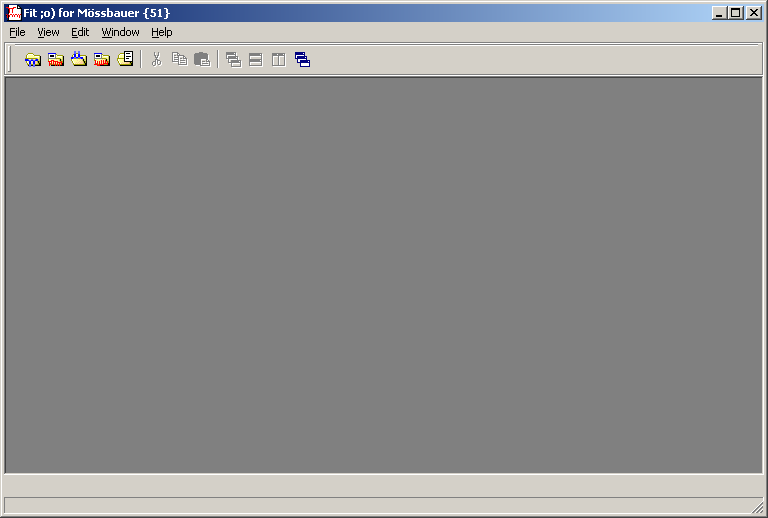

The Main window

This is the main window of the application. This is the starting point of all activity. Other windows and functions are accessible through the menu and the icons.
For instance to open a transmission Mössbauer spectrum press the

icon, or the "Open spectrum" in the file menu. To open a calibration transmission spectrum, use the

icon or the "Open cal spectrum" in the menu. The other options are similar.
In "Settings" it is possible to customize the application. In "Minerals" it is possible to enter magnetic minerals for use in the fitting process. In "Web update" it is possible to update this application online.
In "Help"->"Help" you get this help, and in "Help download" it is possible to download this file. In "About" you can see information about this application.

This program has been developed using Borland Delphi 6 & 7.

The full source code is available and free. To get the source code contact author or the
Mars/Mössbauer group at Copenhagen University.

Info about Borland Delphi can be found at www.borland.com/delphi .

Copyright (c) 2002-2012 Jari í Hjøllum, The Mars/Mössbauer group at Copenhagen University.

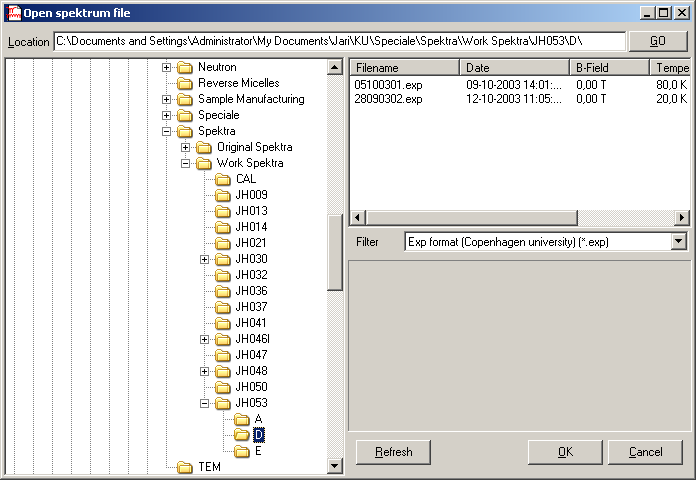

The Open window

This is the open dialog for Mössbauer spectra. Currently only spectra in the exp format can be opened. The exp format is explained here.

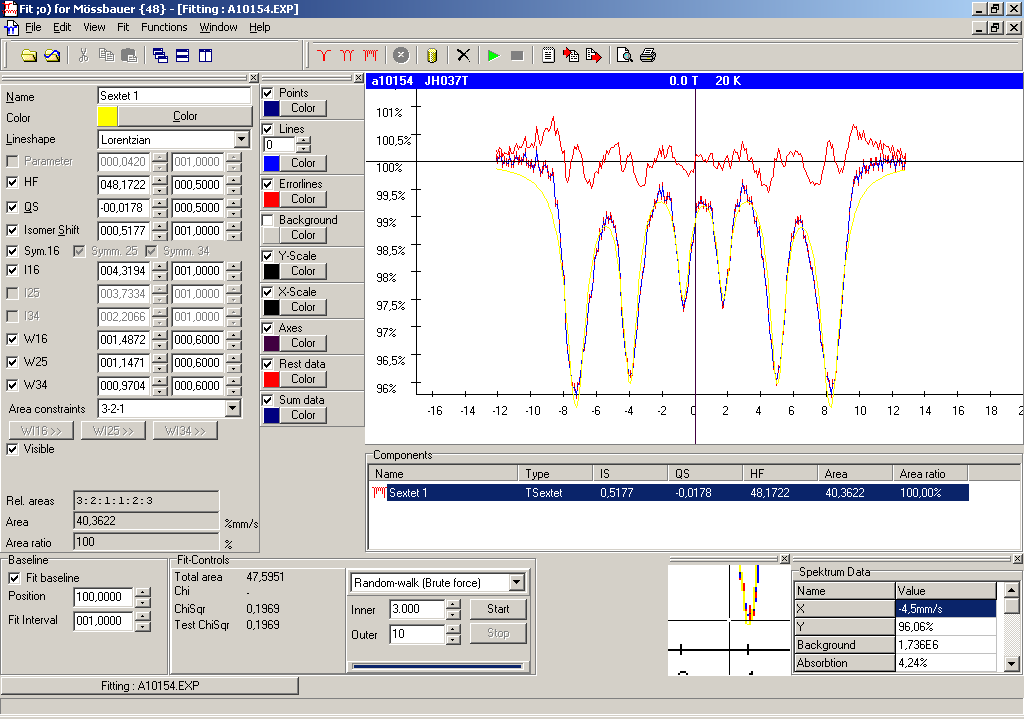

The Mössbauer fit window

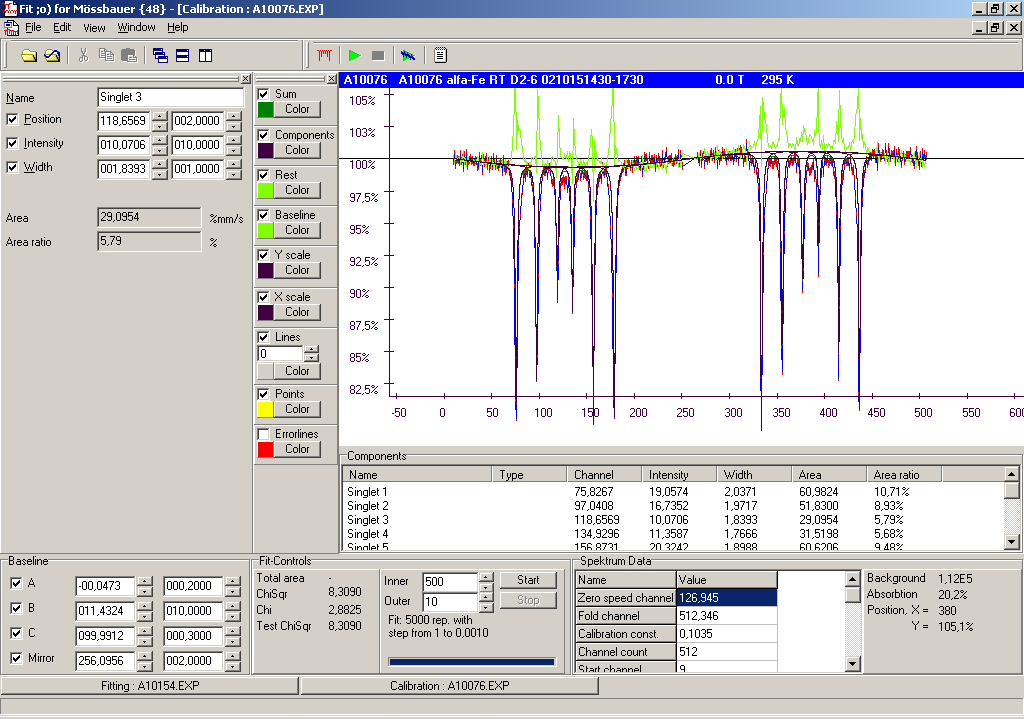

The Mössbauer calibration window

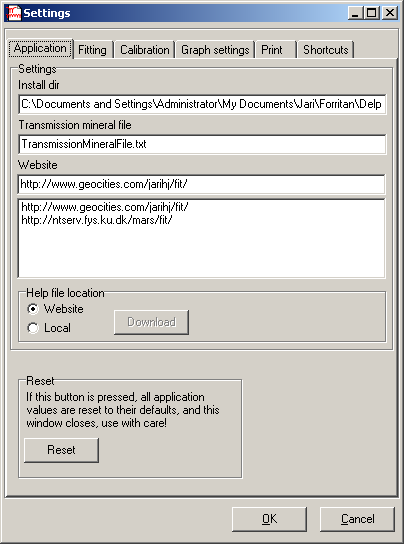

The Settings window

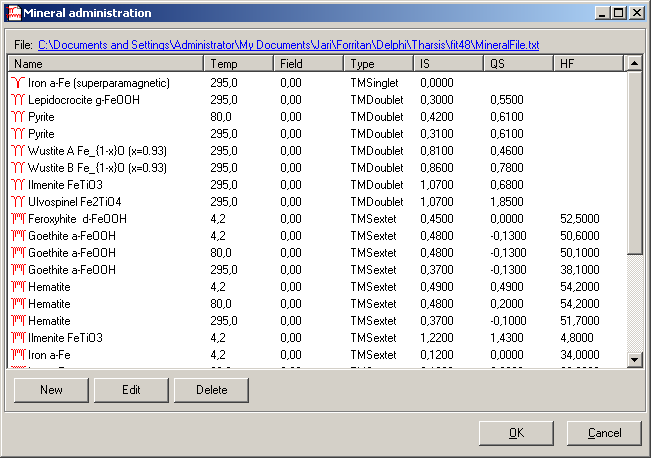

The Minerals window

Supported file formats

The exp format

Back to Top - Back to Content
The exp format is developed at DTU. The file consists of an ANSI/ASCII file where the two first lines contain data about the spectrum, and the remaining lines contain the data. The first line has 4 fields of information:

Spectrum name, in this case : " a10152 ".
Spectrum comment/info, in this case : " JH037T ".
Magnetic field applied during measurement, in this case : "0.0 T".
Temperature at which the spectrum has been obtained, in this case : "60 K".

The second line has 13 fields of information:

Number of channels.
Starting channel, e.g. the first channel for which the data are trusted and are to be used in the analysis.
Stop channel, e.g. the last channel for which the data are trusted and are to be used in the analysis.
Folding channel (actually twice the folding channel). The channel which corresponds to channel 1 in speed.
Number of millions (1024*1024) of counts to be added to the counts in channels the data section. Used for backwards compatibility.
Zero speed channel.
Calibration constant, or speed pr channel (mm/s)/channel.
???
Numbers of channels pr text line, not used in this program
???
???
???
???

The contents of a typical exp file:

a10152   JH037T                                                  0.0 T    60 K
512 009 250 512.3459 000 126.9450 0.1035 0.00000 08 0.000 0.00000 0.000 0.00000
 1        532513   531432   531438   531139   531105   530565   529763
 530983   531531   532261   530173   531761   530144   530197   531584
 531186   530454   529809   529951   531166   530949   529400   529424
 530492   531560   529562   530368   528733   530410   530007   529945
 530217   529108   529731   529142   529647   529983   529555   530593
 529305   527581   527708   529401   528330   528676   527744   527118
 527484   525579   525222   524995   524233   523981   525317   524364
 523367   523290   525594   525114   525913   524779   525807   525890
 524495   524637   525636   526573   527350   526545   526681   527929
 526388   526051   525658   524243   524592   526053   524766   523868
 524190   523690   522208   522438   521375   521743   521118   521360
 520431   521119   520108   520844   521122   521409   520283   520677
 521118   520862   520010   520115   518016   518505   518769   518752
 518485   518207   518212   516305   515807   514696   515776   514075
 514210   512304   511876   511246   509998   509661   505898   505106
 504215   502663   499619   498948   496795   495647   495582   495273
 494573   493687   493821   494307   494488   494271   494586   496906
 497477   498205   498780   500867   501784   503626   504776   507652
 507276   510222   509140   511105   511345   512915   513125   515521
 515431   516687   516266   516946   518311   518179   517132   517293
 519665   518656   520145   520896   521206   519663   520221   521228
 521737   520032   520414   520708   521026   520735   520526   521100
 519820   520844   521743   522190   522237   523968   524287   523844
 524944   524972   523921   524653   525483   526217   526157   525721
 525990   526141   525586   525579   524046   525902   524795   525104
 526105   526116   524637   523617   524411   524489   523687   524423
 525780   525918   526232   526587   526317   528141   526642   527843
 528096   528425   528000   529023   530483   529446   529532   529132
 529599   529954   529657   530249   530385   529104   528616   531467
 529421   531117   528831   530088   529185   530042   530585   529897
 530723   528867   530373   530030   529644   530738   530154   530176
 530315   530859   531463   529799   532329   530058   530778   530786
 530762   531581   531088   532249   532221   532253   530509   532261
 532440   530858   533082   531472   530299   531202   530653   532440
 531982   529982   531626   531366   531770   531307   531141   532949
 531337   532105   532348   533800   531833   532558   531486   532447
 531976   531487   531307   531877   532276   531783   531510   530663
 530996   529887   530060   529111   528444   528032   528086   528638
 527549   526427   527990   530491   527236   529599   529080   529247
 529545   531262   529841   529605   529420   530034   529016   528437
 529512   530227   531022   529946   530069   528241   529943   528294
 529435   528550   529788   527064   527069   526586   526464   526234
 525477   525884   525737   526139   524555   526823   526089   526202
 526817   525849   527091   526580   524884   525554   524287   524670
 523980   524051   523648   522554   523234   521927   521233   519747
 520391   520074   518355   516691   516658   514970   513574   512821
 511609   510867   507969   506846   505700   504520   503096   501901
 500618   500383   500651   500008   499851   498913   501046   500304
 501347   502822   501084   503493   505246   507507   507123   509868
 511959   513553   514292   515844   517490   517880   520021   519181
 521170   521256   521434   521862   522976   522909   524411   523778
 524141   523908   525737   526380   525454   524271   525088   523899
 526156   527080   526391   525845   525272   525890   524509   527099
 525919   525776   526712   527507   527783   528687   529124   528293
 529507   529712   528865   530175   530117   530444   531449   530331
 531181   531154   530491   529823   530468   529750   531362   530304
 529863   530043   529198   529729   529912   527444   528837   527828
 527638   528929   527605   528873   528014   529268   530692   530459
 532468   531742   531940   532903   531517   531881   532425   533098
 532453   532881   531960   533529   533311   532509   533195   533932
 532253   532240   531371   531653   532361   532395   532947   532853
 531761   531802   532263   533355   533044   531501   531581   532270
 532110   533134   532210   531064   530187   531639   531653   531603
 530476   530986   532707   530504   531460   532860   2034839  1

LaTeX export

In the fit window under "fit result" it is possible to export the fit in LaTeX table format. The format is defined in the settings window.
The tags are defined here:

{NAMETITLE}
{LINESHAPETITLE}
{TETTYPETITLE}
{HFTITLE}
{QSTITLE}
{ISTITLE}
{PARAMETERTITLE}
{AREATITLE}
{AREARATIOTITLE}
{CHISQRTITLE}
{REDCHISQRTITLE}
{NAMEUNIT}
{LINESHAPEUNIT}
{TETTYPEUNIT}
{HFUNIT}
{QSUNIT}
{ISUNIT}
{PARAMETERUNIT}
{AREAUNIT}
{AREARATIOUNIT}
{CHISQRUNIT}
{REDCHISQRUNIT}
{NAME}
{LINESHAPE}
{TETTYPE}
{HF}
{QS}
{IS}
{PARAMETER}
{AREA}
{AREARATIO}
{CHISQR}
{REDCHISQR}
